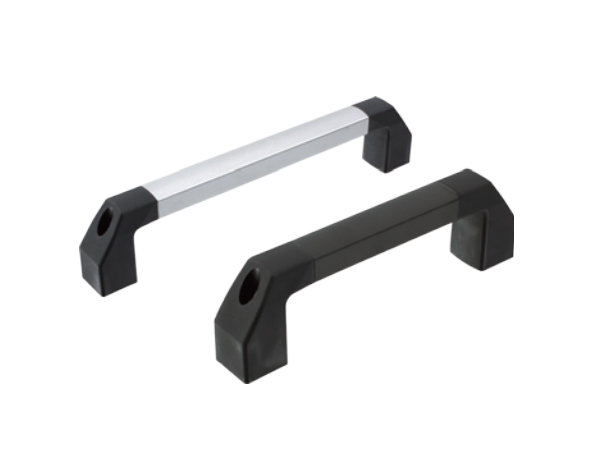

Product Name: | Cabinet Handles |
Model Number: | HY8315.6-1 |
Brand Name: | Huayang |
Executive Standard: | |
Material: | Square tube (Aluminum alloy) Seat (Reinforced nylon) |
Surfaced Process: | Square tube (Black ) Seat (Black/Silver/Oxide) |
Place of Origin: | Zhejiang, China (Mainland) |

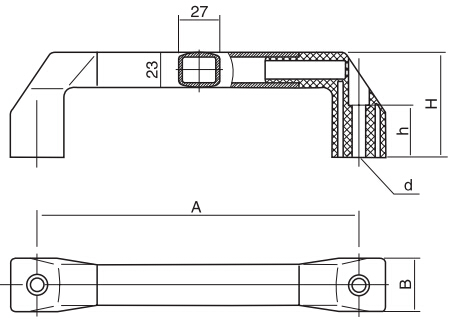

Drawing
Parameter Size
Item No. | Main dimensions(mm) | Mounting hole | |||||
Aluminum alloy | A | B | H | h | B? | h | b |
HY8315.6-1\A=250 | 250 | 35 | 69 | 34 | φ9 沉孔 φ14 | ||
HY8315.6-1\A=300 | 300 | ||||||
HY8315.6-1\A=350 | 350 | ||||||
HY8315.6-1\A=400 | 400 | ||||||
HY8315.6-1\A=450 | 450 | ||||||
HY8315.6-1\A=500 | 500 | ||||||
HY8315.6-1\A=500~2500 | 500~2500 |
