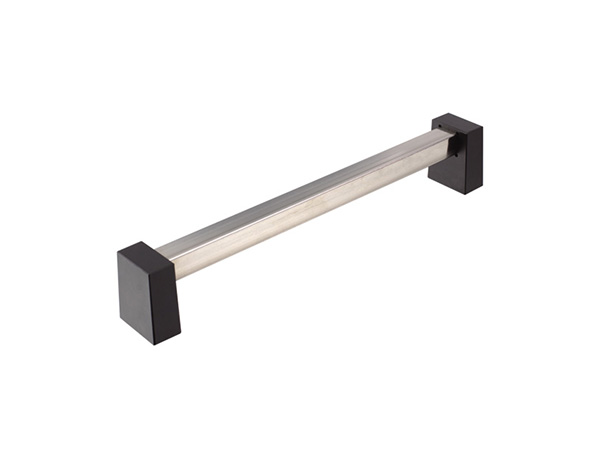

Product Name: | Cabinet Handles |
Model Number: | HY8315.6 |
Brand Name: | Huayang |
Executive Standard: | |
Material: | (Square tube)Stainless steel、(Seat )Aluminum alloy |
Surfaced Process: | (Seat)Black |
Place of Origin: | Zhejiang, China (Mainland) |

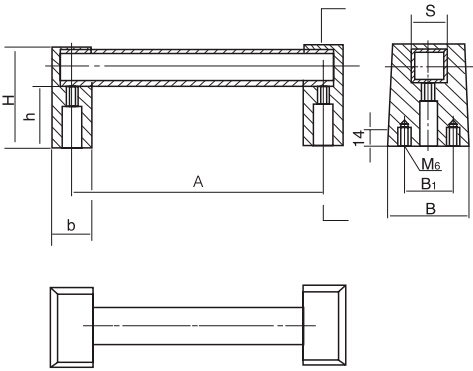

Drawing
Parameter Size
Item No. | Main dimensions(mm) | ||||||
Stainless steel | A | H | B | B? | B? | h | b |
HY8315.6\A=250 | 250 | 54 | 32 | 42 | 26 | 20 | 19 |
HY8315.6\A=300 | 300 | ||||||
HY8315.6\A=350 | 350 | ||||||
HY8315.6\A=400 | 400 | ||||||
HY8315.6\A=500 | 500 | ||||||
HY8315.6\A=500~2500 | 500~2500 |
