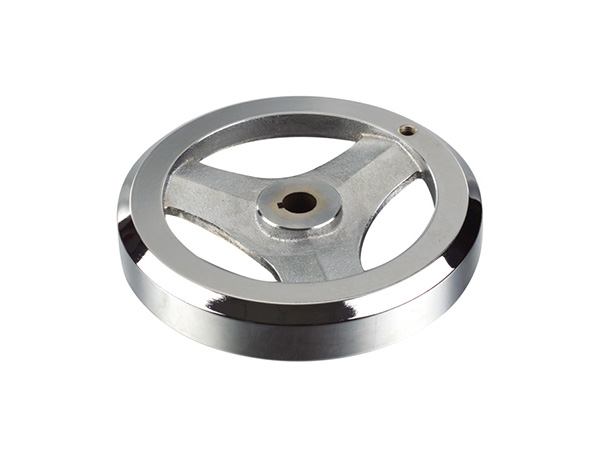

Product Name: Spoked Handwheels Model Number: HY8313.33 Brand Name: Huayang Executive Standard: Material: (Handwheel) Cast iron、(Handle) Steel Surfaced Process: Sand-blasted / chrome bright Place of Origin: Zhejiang, China (Mainland)
Product specification
Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||
| Bakelite | D | H | B | d | h | d? |
| HY8313.33\16x160 | 160 | 47 | 40 | 16 | 32 | 30 |
| HY8313.33\18x200 | 200 | 47 | 40 | 18 | 32 | 30 |
