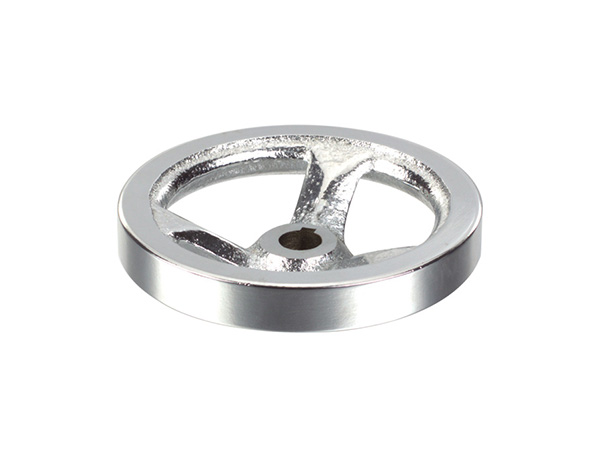

Product Name: Spoked Handwheels With Revolving Handle Model Number: HY8313.3 Brand Name: Huayang Executive Standard: JB\T 7273.3-94 (GB4141.22-84) Material: (Handwheel) Cast iron、(Handle) Steel Surfaced Process: Sand-blasted / chrome bright Place of Origin: Zhejiang, China (Mainland)
Product specification

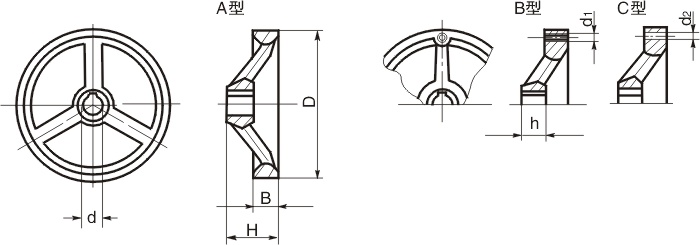

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | |||||
| Type A\Type B\Type C | D | H | B | d | h | d? | d? |
| HY8313.3\12x100 | 100 | 32 | 14 | 12 | 18 | M6 | 6 |
| HY8313.3\12x125 | 125 | 36 | 16 | 12 | 18 | M8 | 8 |
| HY8313.3\16x160 | 160 | 40 | 18 | 16 | 20 | M10 | 10 |
| HY8313.3\18x200 | 200 | 45 | 20 | 18 | 25 | M10 | 10 |
| HY8313.3\22(25)x250 | 250 | 50 | 22 | 22、25 | 28 | M12 | 12 |
| HY8313.3\25(28)x320 | 320 | 55 | 24 | 25、28 | 32 | M12 | 12 |
| HY8313.3\30(40)x500 | 500 | 90 | 35 | 30、40 | 52 | ||
