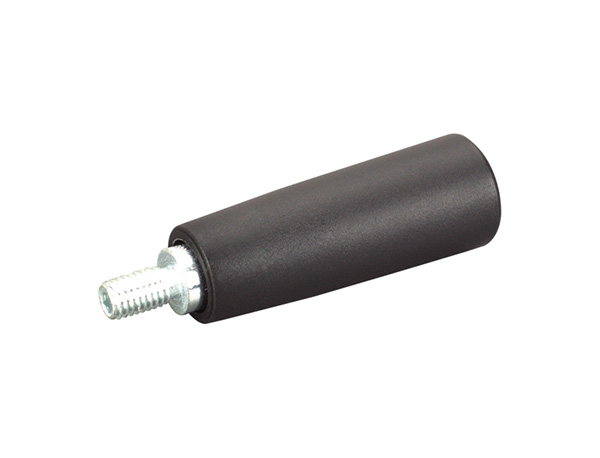

Product Name: | Revolving Handles |
Model Number: | HY8310.5-3 |
Brand Name: | Huayang |
Executive Standard: | |
Material: | Plastic、Steel |
Surfaced Process: | (Handle) Matt black、(Steel) Zincing |
Place of Origin: | Zhejiang, China (Mainland) |

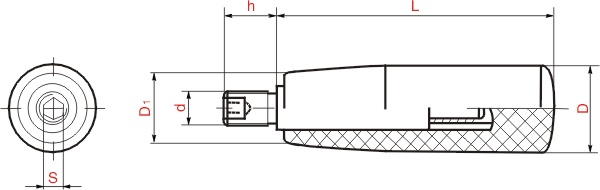

Drawing
Parameter Size
Item No. | Main dimensions(mm) | Threaded shank(mm) | ||||
Plastic | L | D | D? | d | h | S |
HY8310.5-3\M6x28 | 28 | 14 | 11 | M6 | 10 | 3 |
HY8310.5-3\M6x40 | 40 | 18 | 15 | M6 | 13 | 3 |
HY8310.5-3\M6x50 | 50 | 21 | 17 | M6 | 13 | 3 |
HY8310.5-3\M8x65 | 65 | 23 | 19 | M8 | 15 | 4 |
HY8310.5-3\M10x80 | 80 | 26 | 21 | M610 | 16 | 5 |
