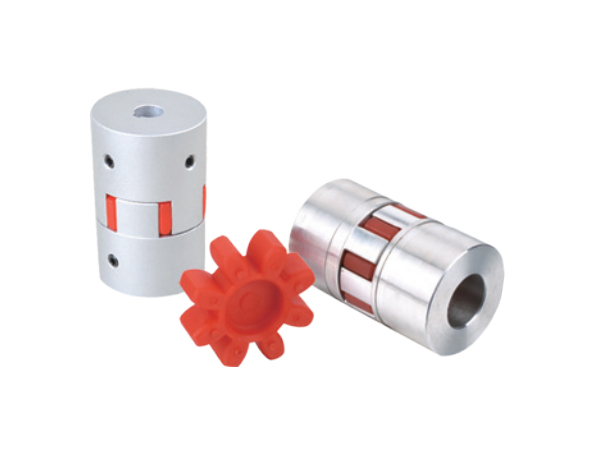

Product Name: | Flexible Couplings |
Model Number: | HY8330.2 |
Brand Name: | Huayang |
Executive Standard: | |
Material: | |
Surfaced Process: | |
Place of Origin: | Zhejiang, China (Mainland) |

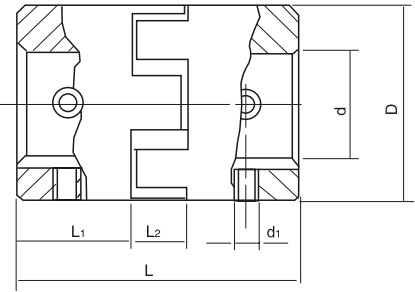

Drawing
Parameter Size
Item No. | Main dimensions(mm) | Mounting hole | ||||
Aluminum alloy\Steel | D | L | L? | L? | d | d? |
HY8330.2\(6~14)x30x35 | 30 | 35 | 11 | 13 | 6~14 | M4 |
HY8330.2\(6~24)x40x66 | 40 | 66 | 25 | 16 | 6~24 | M5 |
HY8330.2\(16~28)x55x76 | 55 | 76 | 30 | 16 | 16~28 | M8 |
HY8330.2\(18~36)x65x90 | 65 | 90 | 35 | 20 | 18~36 | M8 |
HY8330.2\(20~45)x80x114 | 80 | 114 | 46 | 22 | 20~45 | M8 |
