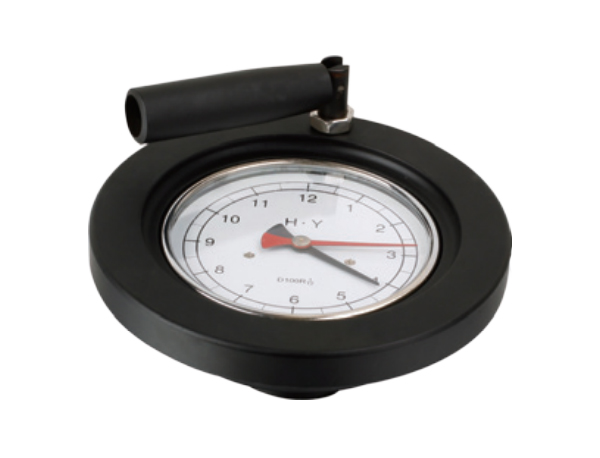

Product Name: Position Indicator Handwheels Model Number: TBL-3 Brand Name: Huayang Executive Standard: Material: （Handwheel）Aluminum alloy、(Handle) Steel Surfaced Process: (Handwheel、Handle) Black Place of Origin: Zhejiang, China (Mainland)
Product specification

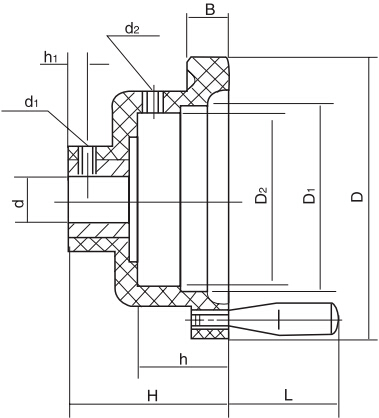

Drawing
Parameter Size
| Item No | Main dimensions（mm） | Dial | Ratio | |||||||||
| D | D? | D? | H | B | h | h? | L | d | d? | d? | i | |
| TBL-3\16x160xi | 160 | 86 | 84.5 | 68 | 18 | 35 | 10 | 80 | 16 | M8 | M5 | 4、6、8、10、12、15、18、20、24、25、30、40、50、80、100 |
| TBL-3\16x160xi | 160 | 107 | 105.5 | 68 | 20 | 35 | 10 | 80 | 16 | M8 | M5 | |
| TBL-3\18x200xi | 200 | 107 | 105.5 | 75 | 20 | 40 | 10 | 80 | 16 | M8 | M5 | |
