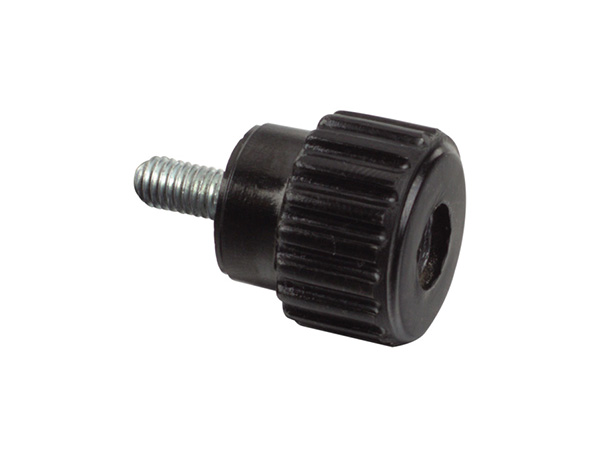

Product Name: Knurled Knobs Model Number: HY8314.27 Brand Name: Huayang Executive Standard: Material: （Knob ）Bakelite 、（ Metal insert ）Black Surfaced Process: （ Metal insert ）Blackened/Zincing Place of Origin: Zhejiang, China (Mainland)
Product specification

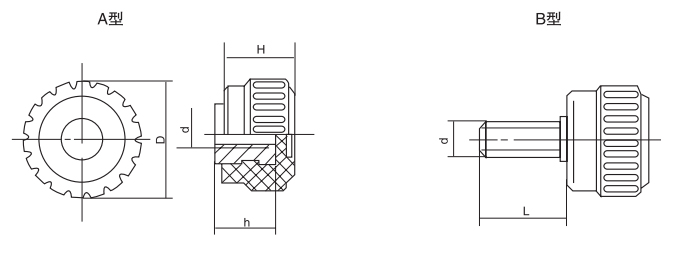

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | Threaded stud | |||
| Type A | Type B | D | H | d | h | L |
| HY8314.27\AM5x20 | HY8314.27\BM5x20xL | 20 | 14 | M5 | 10 | 8、14、20、30 |
| HY8314.27\AM6x20 | HY8314.27\BM6x20xL | 20 | 16 | M6 | 12 | 10、16、20、25 |
| HY8314.27\AM8x25 | HY8314.27\BM8x25xL | 25 | 18 | M8 | 14 | 16、20、25、32 |
| HY8314.27\AM10x32 | HY8314.27\BM10x32xL | 32 | 20 | M10 | 16 | 16、20、25、32 |
