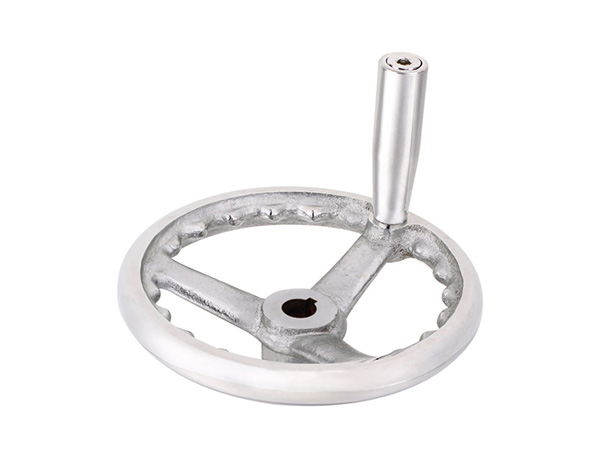

Spoked Handwheels With Revolving Handle
  • Spoked Handwheels With Revolving Handle
  • Product Name: Spoked Handwheels With Revolving Handle
    Model Number: HY8313.28
    Brand Name: Huayang
    Executive Standard:
    Material: (Handwheel) Cast iron、(Handle) Steel
    Surfaced Process: Sand-blasted chrome bright
    Place of Origin: Zhejiang, China (Mainland)
Product specification

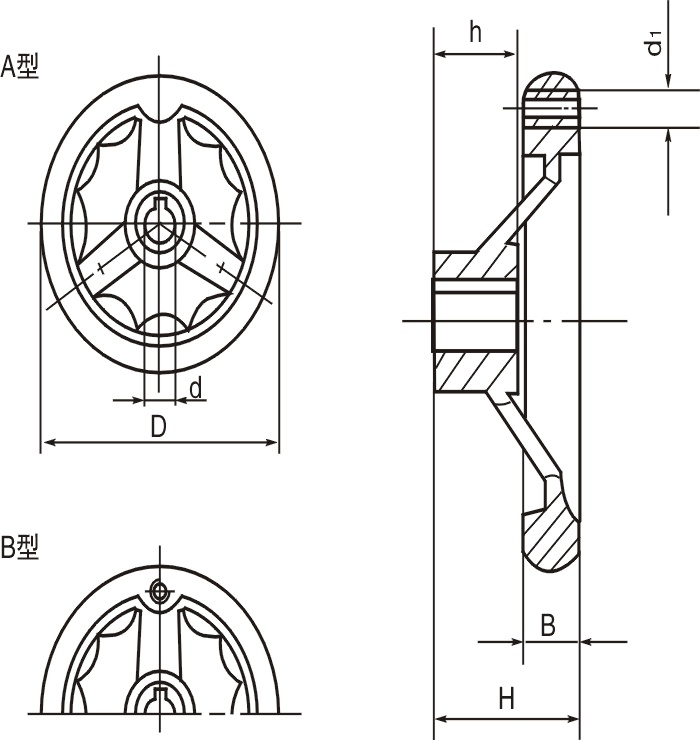

Drawing

HY8313.28波紋圓輪緣手輪結(jié)構(gòu)圖


Parameter Size

Item No.Main dimensions(mm)Mounting hole
Type A
Type B
DHBdhd?
HY8313.28\A10x117
HY8313.28\B10x117
11743161021.5M8
HY8313.28\A12x146
HY8313.28\B12x146
14650191225M8
HY8313.28\A16x192
HY8313.28\B16x192
1926019.51625M10
HY8313.28\A16x160
HY8313.28\B16x160
16050181620M10
HY8313.28\A18x200
HY8313.28\B18x200
20046201825M10
